The Black Pearl...Kit Review & Modification ideas

Post by pstanfield » Tue Oct 18, 2011 12:44 am

Well, after hoping for years this kit would be created, Zvezda has heard my plea and come up with nothing short of a 1/72 scale offering of probably one of the most famous sailing vessels of Hollywood.

The Black Pearl is, of course, a Pirate ship. Originally named The Wicked Wench, burned and sunk, then raised by Davey Jones as part of a deal with Jack Sparrow, who then painted the entire ship black.

The kit is very faithful to the movies...and that seems to be a small issue. The ship was orignally "cursed" in the first movie and no sequel was intended. When Johnny Depp signed on for more flicks, the ship, which was originally built on a barge and was only a partial ship, was rebuilt on top of another ship. this time virtually the entire vessel was built with the exception of the topmasts, which were not needed for most of the camera angles. Zvezda has modelled elements of the first movie, but without the ship being "cursed". To add to the confusion, there is an official Disney logo on the instructions from the 4th movie. Huh? Licensing....it always confuses me.

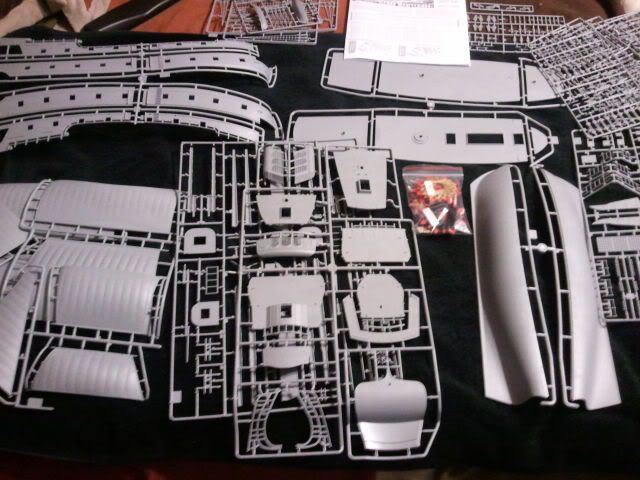

Anyway, here's the kit in all it's glory:

The ship will come in at around 2 feet in length, which is a very workable size. And at 1/72 there is a lot of detail that can be shown and this kit does just that. Molds are crisp and attention has been paid to details. The figurehead is gorgeous, as are the stern decorations.

I'm most impressed by the ship's boat. It is extremely detailed. The mast, oars, sails, hook, even a barrel....it's all there

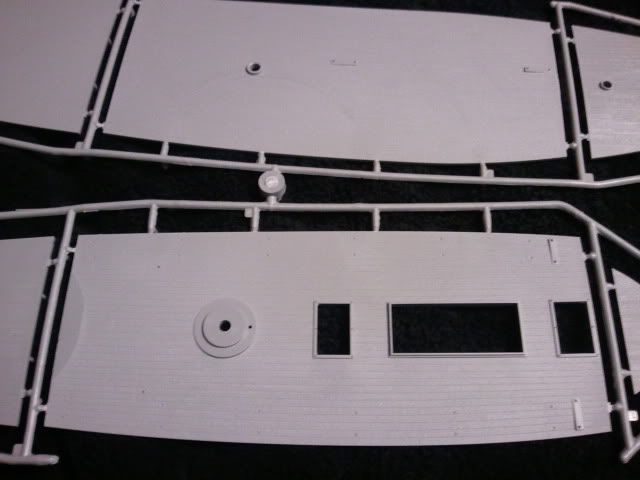

Details don't stop there. The deck is nicely engraved, not too deep, and even has camber. The cannons are just plain beautiful.

All in all this kit is very nice and a is well worth the expenditure...

But...

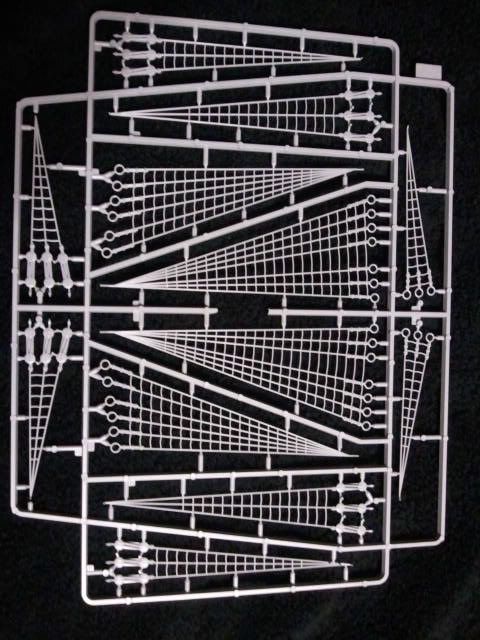

Okay, let's start with the a few of the obvious. First up, the shrouds. Yes, they come pre-molded (I heard the groans out there). But, from a business standpoint I can see that the reason is this kit is not trying to be something on the level of Heller's Victory or Soleil Royale. And when you look at them, they actually grow on you a little bit. the topmast shrouds even have the deadeyes molded on.

Another indication that the "average" modeller is the target for this kit is the fact that the rigging for the cannon has been molded. Yep, all the tackle is molded. You just paint, glue and you're done. Of course the rigging has no sag in the ropes so it looks like the cannons just fired.

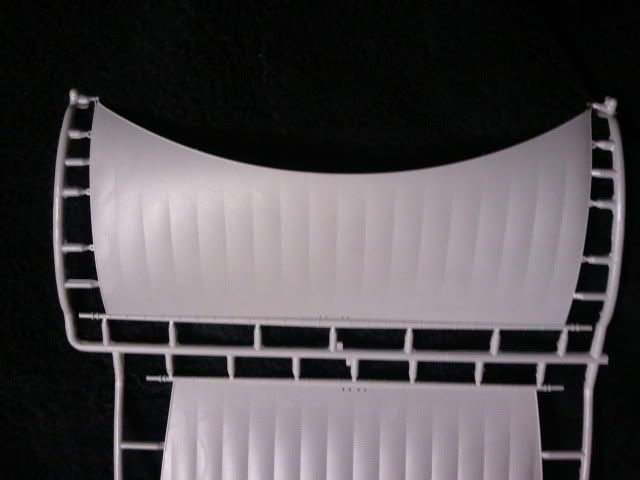

So, before I get into modifications that I may or may not address, let me present the glaring pink elephant in the room. Ladies and Gentlemen, I present to you, in HUGE 1/72 scale, ship's sails molded...yep....MOLDED to the yards!

Now, mind you, they don't look all too bad. It's molded looking like the sail is lashed to yard, and the sails even have all their cringles. But I'm presented with few problems. First, all the sails look alike...they are perfectly filled with wind. It all looks too perfect. Second, the sails of The Black Pearl have crude repair patches all over them. I can't just paint "patches" on the sails. That would look stupid. And third, it would be a nightmare to try and cut the sails off the yards. I may as well toss all of it which, at this point, I just cannot afford to do since the cash flow isn't their to buy everything I need to replace them. So I'm going to come up with the best approach with the intention of using the kit provided sails.

Okay. As accurate as this kit is to the real ship, there are a few minor errors and one glaring error. The minor ones I can either deal with or address. But the huge error has to be addressed....somehow.

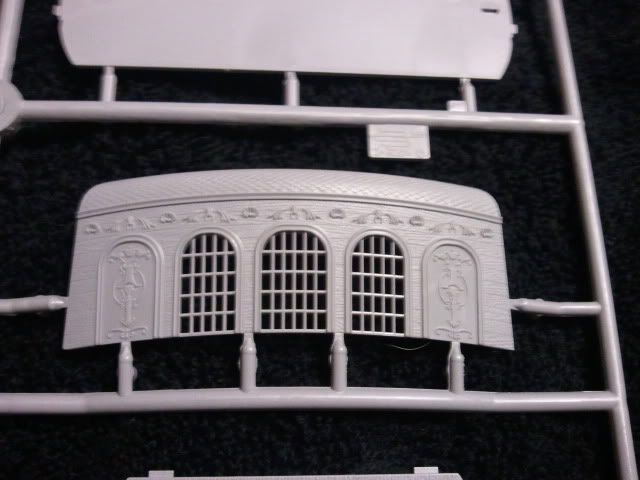

The first minor error are the windows on the stern. On the actual ship they are recessed, as shown here.

The kit offering does not have the windows recessed. While it does give an overall "flat" look, I'm not too concerned, so I'll probably leave them.

Next is more of an omission than an error. On the actual vessel, there is a rope handrail...why, I'm not sure, but it is there.

I will be adding this to the model since it will be fairly easy to do. The other ommission is the Binnacle. It's clearly on the actual ship, but not offered on the kit. It's obvious I'll have to come up with something, which will require a bit of work.

There are other small errors...handrails in the wrong position, that kind of stuff, but nothing that can't be just accepted. If I get too nitpicky I'll never get it done.

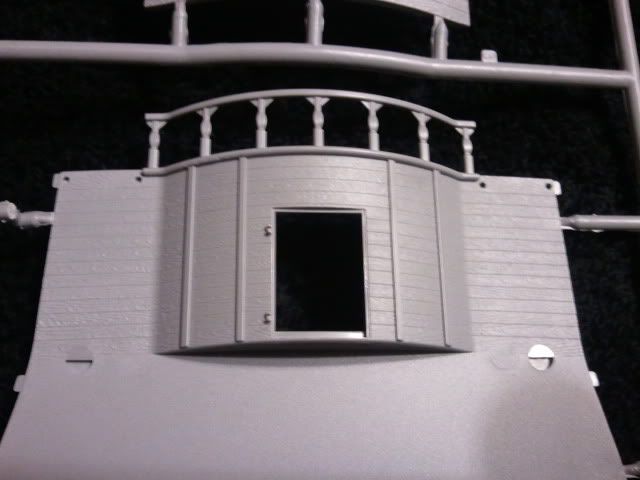

Okay, now for the biggie. Here's the doorway to the Captain's Quarters from the kit.

Not bad, right? Not spectacular, but not bad. But then take a look at the one from the actual ship.

You can see my dilemma. This is a very decorative part of the ship. I can't just go with the plain "wall" from the kit. The actual ship has more ornate double doors, with statuary on either side (in the same style as the statuary that lines the stern), and 4 windows. All of this will have to be built from scratch and fitted to the hull. And since the hull is multiple pieces, this scratchbuild will have to act as a support for the entire hull, just like the kit piece. The stairs on either side are also wrong on the kit. All of this is going to take some work and is something I have never done before. This will be interesting to say the least.

If you bought this kit and never compared it to the movies, then it's a fantastic kit for the average modeller as well as the experienced modeller, especially given the fact that 1/72 plastic sailing ship kits are rare. Unfortunately for me, this model is a gift for my daughter, who is a huge fan of Johnny Depp and the PotC franchise. She'll be able to tell....

So that's it. If anyone has any suggestions for scratchbuilding the doorway/wall/windows, please let me know.

And awayyyyyyy we go!

Phil
